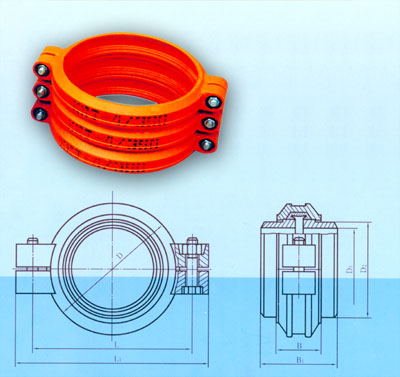

锻压卡箍式柔性肩型管接头
Forged clamp flexible shoulder pipe joint
KRJ系列 一 一PN1.6～4MPa 一 一DN150～1000mm
 |
专利号：ZL92106535.3 ———— 国际专利主分类号:B23P 13/00
锻压式柔性管接头技术规格及参数 Technical Parameter
| 公称压力 |
公称 |
管端最 大间隙 clear -ance maxΔ mm |
最大转角max. turn -angle θ° |
管子 挠度defle -ction f mm/m |
L1 |
L |
D |
D1 |
D2 |
B |
B1 |
螺栓bolt |
理论 质量 theore tical weight kg/套 |
|
| 直径 d |
数 量 |
|||||||||||||
| mm |
mm |
pc. |
||||||||||||
| 4 |
150 |
10 |
2.74 |
47 |
307 |
259 |
226 |
154 |
168 |
68 |
120-130 |
16 |
2
|
11.99 |
| 175 |
10 |
2.35 |
41 |
333 |
285 |
252 |
178 |
194 |
68 |
120-130 |
13.31 |
|||
| 200 |
10 |
1.48 |
26 |
358 |
310 |
277 |
207 |
219 |
68 |
120-130 |
14.61 |
|||
| 225 |
10 |
1.33 |
23 |
384 |
336 |
303 |
232 |
245 |
68 |
120-130 |
15.93 |
|||
| 250 |
10 |
1.20 |
21 |
412 |
364 |
331 |
259 |
273 |
68 |
120-130 |
17.36 |
|||
| 300 |
10 |
1.04 |
18 |
483 |
427 |
383 |
310 |
325 |
68 |
120-130 |
18 |
20.84 |
||
| 350 |
10 |
1.03 |
18 |
535 |
479 |
435 |
359 |
377 |
68 |
120-130 |
23.49 |
|||
| 400 |
10 |
0.97 |
16 |
595 |
535 |
484 |
408 |
426 |
68 |
120-130 |
20 |
26.58 |
||
| 2.5 |
450 |
10 |
0.93 |
16 |
649 |
589 |
538 |
462 |
480 |
68 |
120-130 |
29.33 |
||
| 500 |
10 |
0.90 |
15 |
703 |
641 |
588 |
512 |
530 |
68 |
120-130 |
22 |
32.63 |
||
| 600 |
10 |
0.88 |
15 |
803 |
741 |
688 |
610 |
630 |
68 |
120-130 |
37.73 |
|||
| 1.6 |
700 |
10 |
0.82 |
14 |
889 |
829 |
778 |
700 |
720 |
68 |
120-130 |
22 |
4 |
45.10 |
| 800 |
10 |
0.80 |
14 |
989 |
929 |
878 |
800 |
820 |
68 |
120-130 |
50.20 |
|||
| 900 |
10 |
0.73 |
12 |
1093 |
1031 |
978 |
900 |
920 |
68 |
120-130 |
20 |
56.79 |
||
| 1000 |
10 |
0.70 |
12 |
1193 |
1131 |
1078 |
1000 |
1020 |
68 |
120-130 |
60.55 |
|||
一一理论质量包括卡箍、端管、密封橡胶圈、螺栓和螺母的质量。
一一Theoretical weight will be consisted of the weight
of the clamps、end rings、sealing rubber rings、bolts and nuts。
一一公称直径150-600mm的卡箍由两瓣组成，大于600-1000mm由四瓣组成。
Clamp with normal Dia.150-600mm is composed by 2 sectors,normal Dia.600-1000mm
is composed by 4 sectors.
| |
|
|
